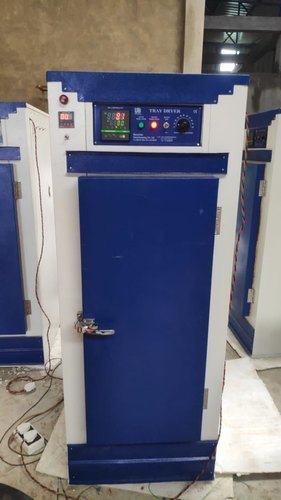

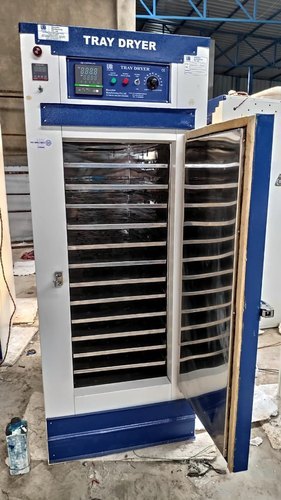

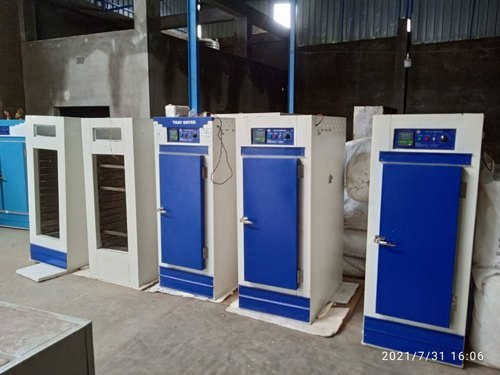

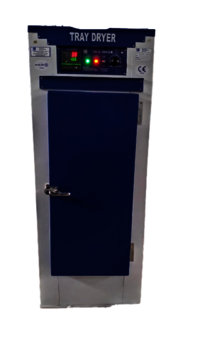

12 Tray Dryer

Product Description

        Ergonomic design for versatile usage eases of use, plug & play system.

        International Standards - UK Complied Certifications ISO 9001:2015, CE. GMP.

        Company is under Make in India & MSME Certified with International standard, certified model with duly mentioned brand name .Internal IQ/OQ/PQ Certification.

        Double walls System, between two walls are filled with glass wool insulation 3-5 inch.

        Outer Construction - High Quality Mild Steel Powder Coating (22 SWG)

        Inner Construction: Stainless Steel SS304, 22 SWG (JSL make)/ Aluminium 24 gauge.

        Tray Size:- 16x32x1/1/4 inch

        Inside Air circulation blower/ fan to maintain uniform temperature of the chamber & proper drying- individual switches for each fans

        Solid Door with Lock & Both side ventilation.

        3 sided heating element throughout the

chamber for uniform temperature rise- fall & Long durability.

        Temperature range ambient +5 c - 200 C . Accuracy 1C

        Front Panel- comprises of on/off switch, main & load indicator witch, Microprocessor-based PID Controller.

        MCB To on off the machine at the back panel. Buffer is at the base of the machine.

        Power supply - 220- - 230V, 50-60 Hz, Single phase





CODE	Capacity                                        No of doors		No of fans
A	12 tray	1	3
B	24 tray	2	6
C	48 tray	4	12
D	96 tray	8	24
